Product Details:
|
Keywords: | Rollable Solar Panel | Number Of Cells: | 1 Cells |
---|---|---|---|
Max. Powe: | 0.1W | Application: | Indoor / Outdoor |
Voc: | 1.7V | Vop: | 1.4V |
Lop: | 70mA | Standard Testing Conditions: | 100000Lux,25 |
High Light: | Rollable Solar Panel 0.1W,Rollable Solar Panel 70mA,70mA amorphous silicon thin film solar cell |

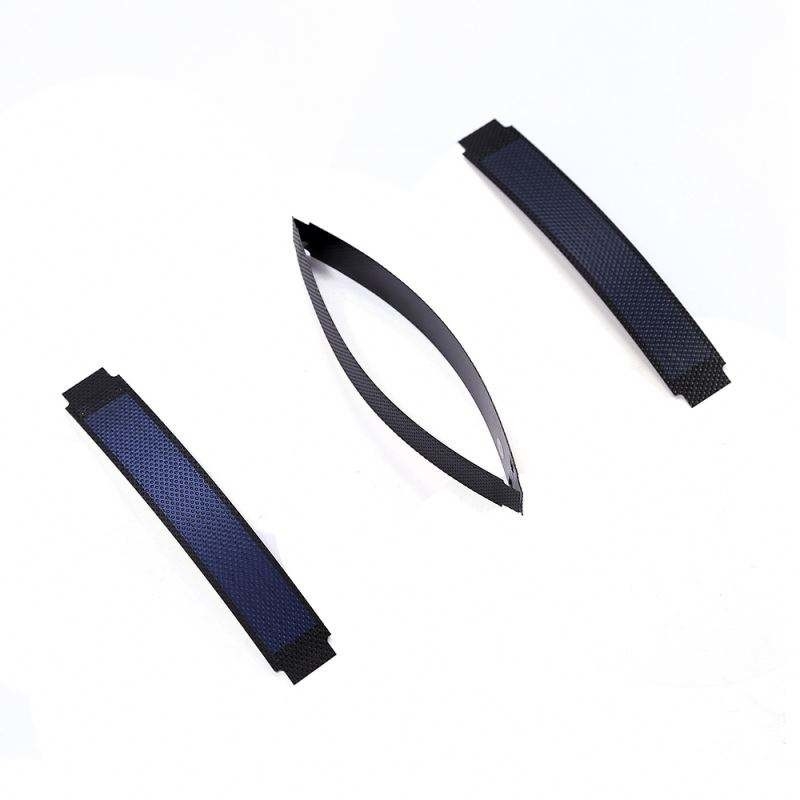

Amorphous Silicon Solar Panel Flexible Rollable Solar Panel
Rollable Solar Panels Advantage:
1. Low cost of materials and manufacturing processes
Since the reaction temperature is low, it can be produced at a temperature of about 200 ° C. Therefore, a film can be deposited on a glass, a stainless steel plate, a ceramic plate, or a flexible plastic sheet, which is easy to be produced in a large area and has a low cost.
2. Suitable for mass production
The amorphous silicon solar cell using a glass substrate has a main process (PECVD) similar to that of a TFT-LCD array, and the production methods are characterized by high automation and high production efficiency.
3. High-temperature performance is good
When the solar cell operating temperature is higher than the standard test temperature of 25 ° C, its optimal output power will decrease; amorphous silicon solar cells are much less affected by temperature than crystalline silicon solar cells.
Rollable Solar Panel Specification:
Max. Powe | 0.1W | Place of Origin | Guangdong, China |
Indoor And Outdoor | Yes | Brand Name | WINXU |
Application | torch,toy,solar flowe,lights | Model Number | 19232 |
Certification | ROHS | Panel Dimensions | 192*31.2*0.4mm |
Rollable Solar Panel FAQ:
Q1. Can I have a sample order for a rollable Solar Panel?
