Product Details:
|
| Product Name: | A-Si Amorphous Silicon Solar Panel | Panel Dimensions: | OEM/ODM |
|---|---|---|---|
| Application: | Small Electronics | Voltage: | Custom |
| OEM Order: | Customized Solar Panel Aavilable | Feature: | Indoor Solar Panel |
| High Light: | Indoor Amorphous Silicon Solar Cell,Lightweight Amorphous Silicon Solar Panels,Robust Amorphous Silicon Solar Panels |
||

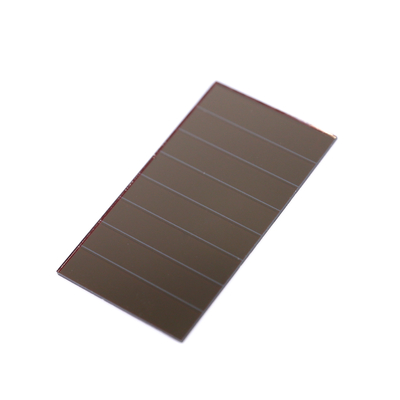

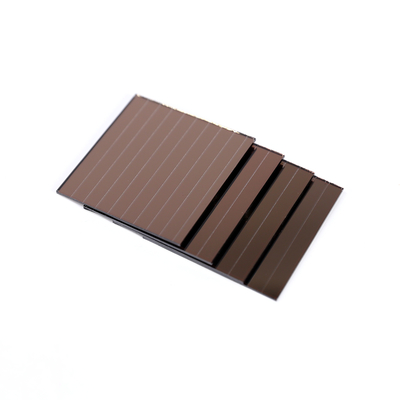

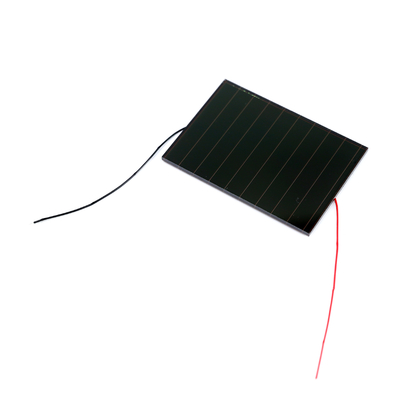

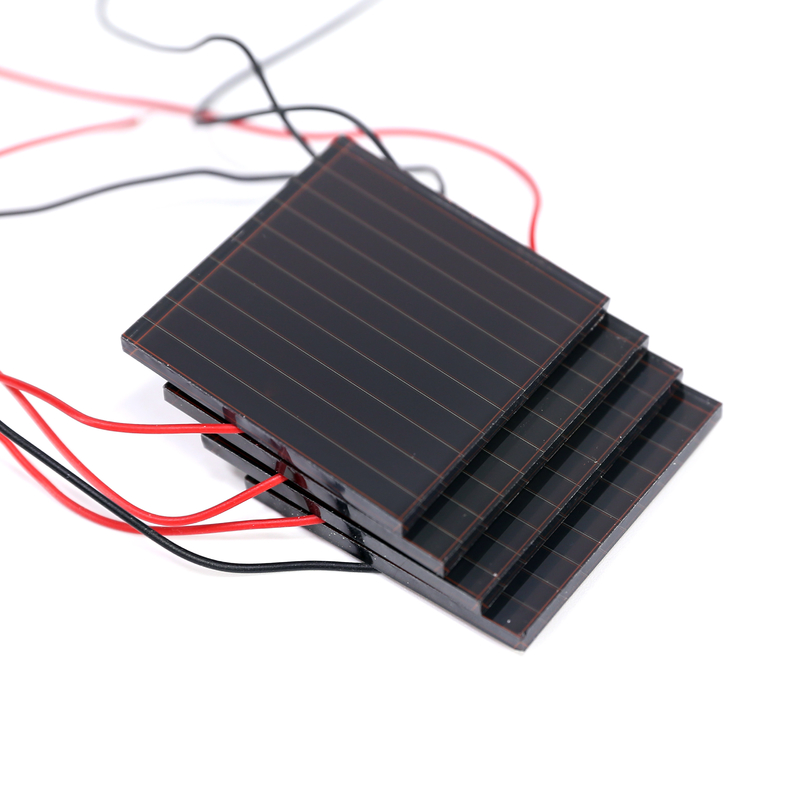

Amorphous silicon solar cell
Encapsulation Methods: PVC film, PET film, or PET/EVA lamination etc.
Application: Lawn lamp, Garden lamp, Indication light, Decoration light, Spotlight,
Pest killing lamp, Solar floating light, Artificial lamp, Mobile charger,
Car battery charger, Outdoor electric equipment charger, Spray pump,
Pet house, Rat Repellent, Bird Repellent, Fan hat, Toy,
Electric thermometer, Torch etc.
Technical paremeter:
| Model | Dimension (mm) |
Vmp (V) |
Imp (mA) |
Voc (V) |
Isc (mA) |
| WX5050 | 50*50*3 | 2.0 | 32 | 3.0 | 50 |
| WX6060 | 60*60*3 | 2.5 | 40 | 3.8 | 60 |
| WX7070 | 70*70*3 | 3.0 | 45 | 4.5 | 70 |
| WX70150 | 70*150*3 | 3.0 | 95 | 4.5 | 150 |
| WX9070 | 90*70*3 | 4.0 | 45 | 6.0 | 70 |
| WX10569 | 105*69*3 | 4.5 | 45 | 6.8 | 70 |
| WX150150 | 150*150*3 | 7.0 | 95 | 10.5 | 150 |
| WX305106 | 305*106*3 | 14.5 | 70 | 20.0 | 110 |
| Test condition (STC): AM1.51000W/m225 | |||||
Amorphous solar cells have various advantages over mono- or polycrystalline solar cells:
Remarks: We have over a hundred sizes of indoor amorphous silicon solar panels,.variety specifications and different encapsulations of solar panels can be customized according to customers demand.
FAQ
1. Q: Why choose we?
A: 12-year product materials and workmanship warranty and 25-year linear power output warranty. B: Anti-PID (Potential Induced Degradation) performance and rigorous EL testing. C: Excellent low light power generation performance and fully automated component production line.
2. Q: Can I have my own customized product?
A: Yes, our customized requirements for logo, design, outer package are available.
3. Q: What certificates do you have?
A: Our solar products have got ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe) and TUV (Technischen Uberwachungs Vereine).
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.Q: Whether technical support is provided? A: Yes, we can provide remote guidance installation and off grid system support.
