Product Details:
|
Keywords: | Rollable Solar Panel | Number Of Cells: | 1 Cells |
---|---|---|---|
Max. Powe: | 0.1W | Application: | Indoor / Outdoor |
Voc: | 1.7V | Vop: | 1.4V |
Lop: | 70mA | Standard Testing Conditions: | 100000Lux,25 |
High Light: | 70mA amorphous silicon thin film solar cell,0.1W amorphous silicon thin film solar cell,thin film rollable solar panels 70mA |

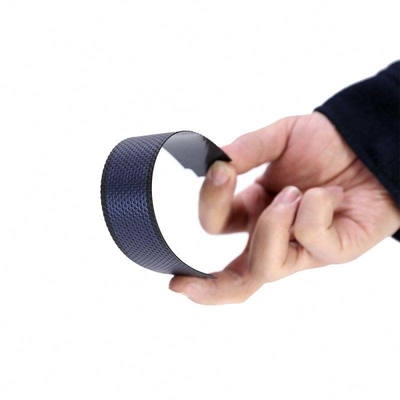

High Quality Thin Film Flexible Solar Panel Rollable Solar Panel
Rollable Solar Panels Features:
1. Low cost of materials and manufacturing processes
Due to the low reaction temperature, it can be produced at a temperature of about 200 °C. Thus, thin films can be deposited on glass, stainless steel plates, ceramic plates or flexible plastic sheets with ease of processing. Large area production, low cost.
2. Short energy recovery period
Due to the low manufacturing cost of amorphous silicon cell raw materials and the lower production temperature, the production of amorphous silicon solar cells consumes less energy than the production of monocrystalline silicon solar cells at various stages, so its energy payback period is shorter.
3. Suitable for mass production
The main process (PECVD) of amorphous silicon solar cells using glass substrates is similar to that of TFT-LCD arrays, and its production method has the characteristics of high automation and high production efficiency.
Rollable Solar Panel Specification:
Material | Amorphous Silicon | Vop | 1.4V |
Size | 192*31.2*0.4mm | Iop | 70mA |
Number Of Cells | 1 cells | Standard Testing Conditions | 100000Lux,25 |
Max. Powe | 0.1W | Place of Origin | Guangdong, China |
Indoor And Outdoor | Yes | Brand Name | WINXU |
Application | torch,toy,solar flowe,lights | Model Number | 19232 |
Certification | ROHS | Panel Dimensions | 192*31.2*0.4mm |
Voc | 1.7V | Indoor and outdoor | Yes |
Products | transparent flexible solar panel | Standard testing conditions | 100000Lux,25 |
Rollable Solar Panel FAQ:
Q1. Can I have a sample order for a rollable Solar Panel?
