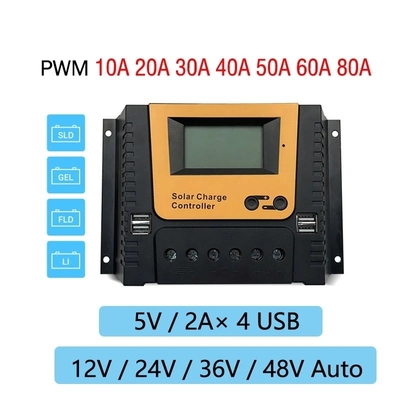

PWM Solar Charge Panel Controll Regulator 10A 20A 30A 40A 12V 24V 36V 48V

Large Image : PWM Solar Charge Panel Controll Regulator 10A 20A 30A 40A 12V 24V 36V 48V

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WINXU
Certification:	ce, RoHS
Model Number:	SCC1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2.36
Packaging Details:	Box
Delivery Time:	Negotiated by quantity
Payment Terms:	T/T, Western Union, D/A

Contact Now

PWM Solar Charge Panel Controll Regulator 10A 20A 30A 40A 12V 24V 36V 48V

Description

Keywords:	Solar Regulator PWM Battery Charger	IP Rating:	IP65
Power Source:	12V/24V	Material:	LCD Display
Type:	10A 20A 30A 40A 50A 60A Solar Control	Power:	10W-2000W
Color:	Cool White
High Light:	PWM Solar Charge Controller , Solar Charge Panel Controll Regulator 10A , 48V Solar Charge Panel Controll Regulator

60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V

Build-in industrial micro controller.

Big LCD display,all adjustable parameter.

Fully 4-stage PWM charge management.

Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

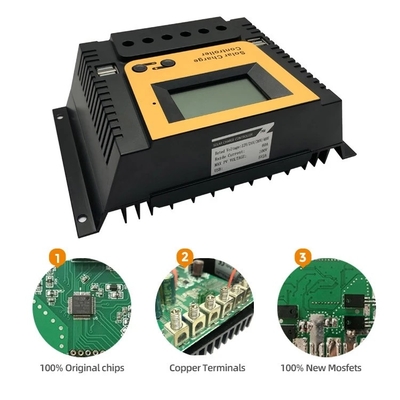

Dual mosfet Reverse current protection ,low heat production.

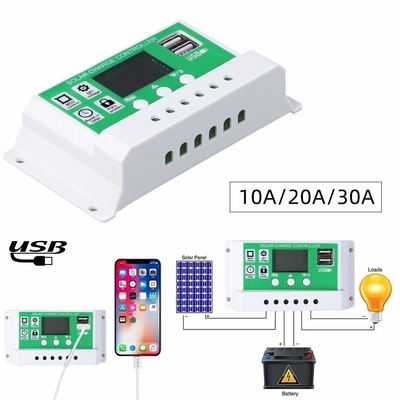

Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

Solar Emergency Lights Parameter:

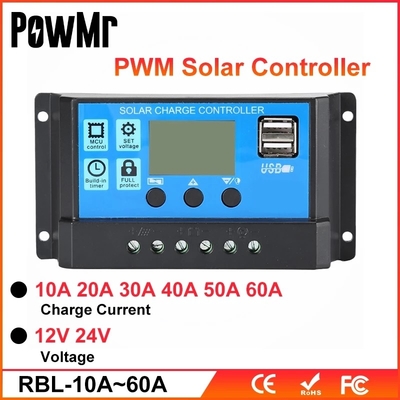

MODEL	RBL-10A	RBL-20A	RBL-30A	RBL-40A	RBL-50A	RBL-60A
Battery Voltage	12V 24V Auto
Charging Current	10A	20A	30A	40A	50A	60A
Discharging Current	10A	10A	10A	20A	30A	30A
Max Solar input	48V(for 24V battery) 24V(for 12V battery)
Equalization	14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge	13.7V(defaul,adjustable)
Discharge stop	10.7V(defaul,adjustable)
Discharge reconnect	12.6V(defaul,adjustable)
Charge reconnect	13V
Voltage of open light	Solar Panel 8V(Light lights delay)
Voltage of close light	Solar Panel 8V(Light off delay)
USB output	5V/3A
Self-consume	<10mA
Operating temperature	-35°C~+60°C
Size	133.57035mm			1889047mm

PWM Solar Charge Panel Controll Regulator 10A 20A 30A 40A 12V 24V 36V 48V 0

Solar Emergency Lights FAQ:

1. How to proceed an order for solar light?

Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

2. Is it OK to print my logo on solar light product?

Yes.we could print logo on some solar light. Please inform us formally before our production and confirm the design firstly based on our sample.

3. Do you offer guarantee for the products?

Yes. we offer 1 year warranty to our products.
